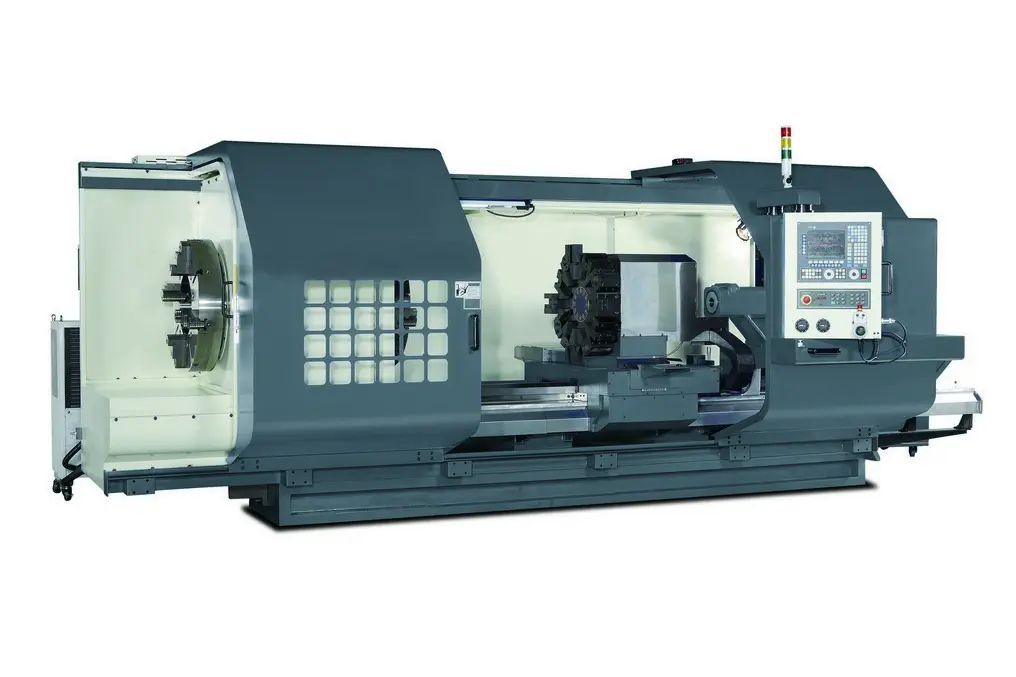

New POREBA TRB-35 | CNC Lathes

Description

Model: TRBN 35/6/4M
2 Way Bed Design + Support Way
Fanuc Oi-Tf CNC Control with Manual Guide I
Swing over Bed 890 mm (35”)
Swing over Cross Slide 510 mm (20”)
Bed Width 715 mm (28.1")
Distance between Centers 4,000 mm (156”)
Spindle Bore Diameter 155 mm (6”)
Spindle Nose A2-15
Spindle Speeds 3 - 300 RPM (Infinitely Variable)
Speed Ranges - 4 (Automatic Shifting)
Main Motor 75 HP
Heavy Duty 4 Position Automatic Turret
Programmable Tail Stock with 280 mm (11") Live Quill
2) Chip Conveyors (Front & Rear)
30” Diameter Steel Body 4 Jaw Chuck
Telescoping Way Covers on Carriage (4 Pcs.)
Thermally Controlled Head Stock Lubrication (18,000 BTU)
Air Conditioned Electric Panel (6,000 BTU)
Flush Coolant
Auto Lubrication
Control Specifications
Fanuc 0i-Tf CNC Control
Full Key Operator Panel
Manual Guide with Thread Repair Function
Duplix MPG Panel
Minimum Program Command 0.001 mm (0.35”)

Options:
3 Point Roller Steady Rest 50 mm to 400 mm (1.9” to 15.7”)…………..add an additional $7,650.00
3 Point Roller Steady Rest 380 mm to 700 mm (14.9” to 27.5”)………add an additional $8,925.00
