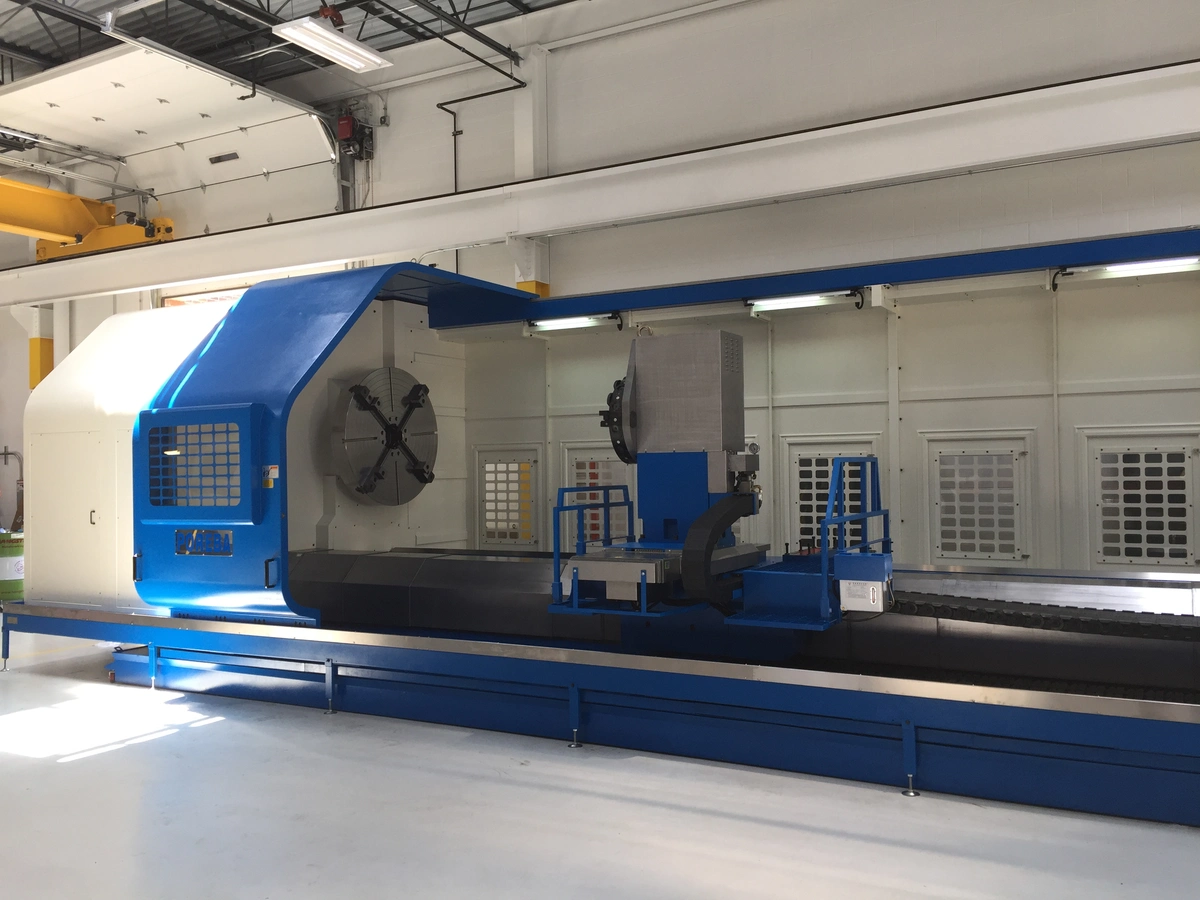

80” x 393” Poreba CNC Lathe

Poreba 80” x 393 CNC Lathe
New 2022
Fanuc 0iTf CNC Control
80” Diameter Swing over Bed
66.5” Diameter Swing over Cross Slide
9” Diameter Spindle Bore
393” Distance between Centers
9” Diameter Tailstock Quill
Programmable Tailstock Quill and Body
Spindle Speeds 5 - 300 RPM, 4 Gear Ranges
Spindle Nose Mount A2-15
3 Shear Bed - Carriage Can Bypass Tailstock, Carriage and Steady Rests
4 Position Automatic Turret
9” Diameter Boring Bar Holder
60” Diameter 4 Jaw Chuck
1.9” to 15.7 Capacity Steady Rest
14.9” to 27.5” Capacity Steady Rest
27.4” to 49” Capacity Steady Rest
Main Spindle Motor 50/75 HP
Front & Rear Chip Conveyors
Air Conditioned Electrical Cabinet
Automatic Lubrication
Coolant System
